Boretrace® Detectable Marking Tape
Addresses growing underground congestion by providing clear utility identification along with an integral tracer wire.
Boretrace® addresses the identification challenges in horizontal directional drilling installations. With embedded tracer wire and reinforced construction, it provides clear utility identification in congested underground environments, where relying on the AWPA color code alone is often insufficient.
Embedded tracer wire provides reliable detection capability while high tensile fiber reinforcement adds durability for HDD installation conditions.
Underground utility damages are still common and often preventable. These statistics from the 2024 DIRT Report & Public Dashboard underscore the need for improved locating practices.
Each material is carefully selected for its ability to deliver long-lasting identification for underground utilities.

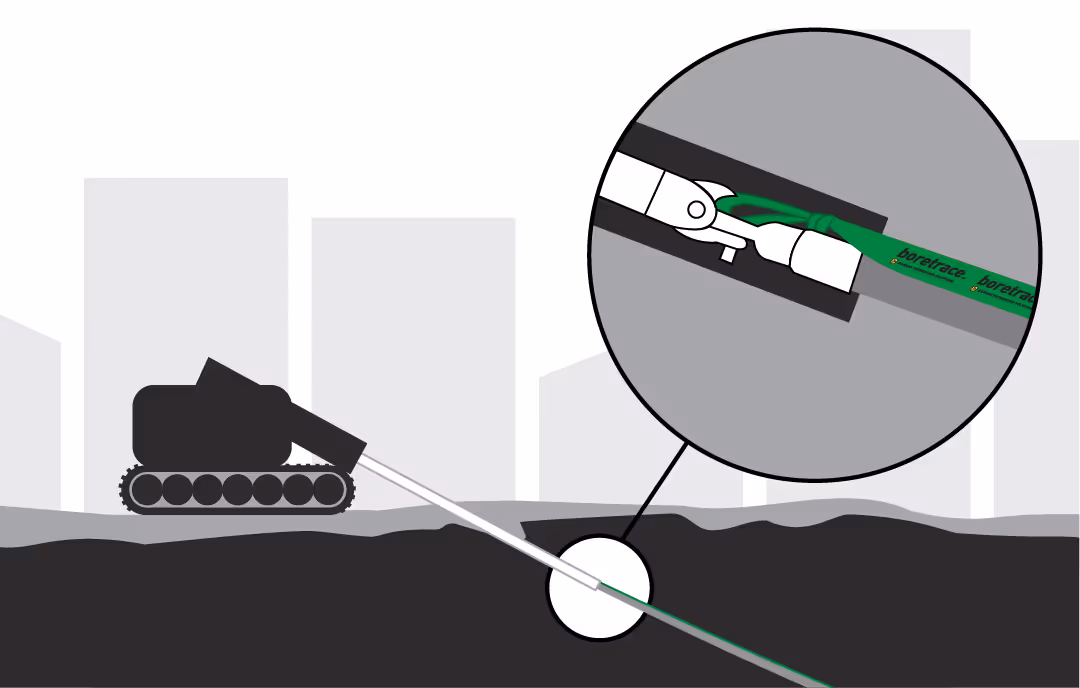

Horizontal Directional Drilling (HDD)
Film Layers: 11 mil
Core: 3,000 lbf. (ASTM D6775)
31,500+ PSI (ASTM D882)
Core: 3-4% at ultimate break
Excellent resistance to acids.
Good resistance to alkalis.
Not attracted by mildew.
Excellent resistance to aging.
Supporting documents for the evaluation of Boretrace® Detectable Marking Tape. Contact us for additional information or guidance.
Report detailing the evaluation of Boretrace® Detectable Marking Tape prepared by the Gas Technology Institute (GTI) in 2021.
Proper installation of detectable marking tape ensures optimal location for HDD-installed utilities. See the installation sheet for step-by-step instructions.
Quick reference guide to our core underground warning and marking tape products, including specifications and customization options.
Choose the right configuration for your project. Customizable options are available to match your utility type and identification requirements.
Red is used to serve as a warning for the presence of electric power lines, cables, and conduit.
Orange is used to indicate the presence of telecommunication lines, alarm or signal lines, cables, and conduit.
Yellow is used to warn of underground gas, oil, steam, petroleum, and other gaseous materials.
Green is used to indicate the location of sewers and drain lines.
Blue is used to indicate the presence of drinking water lines (clean, potable water).
Purple is most often used for reclaimed water but is also used to indicate user-defined utilities such as irrigation lines.
4"
14 AWG CCS Tracer Wire
The most popular detectable option for Boretrace® offers a reliable balance of signal strength, flexibility, and cost for standard detection needs.
12 AWG CCS Tracer Wire
Provides higher conductivity and added durability for longer runs or applications requiring stronger signal transmission.
Standard Legends
Standard legends are available with commonly used utility-specific warning language. Legends are available for: Water, Sewer, Reclaimed Water, Electric, Fiber, and Gas.
Customizable Legends
The digital printing process accommodates custom warning messages and full color-logos. This option is often selected to include an emergency contact number.
