How to Install Channeltape™ Utility Identification Sleeve

In this video, S&N Infrastructure demonstrates the installation process for Channeltape™, including preparing the sleeve, pulling fiber optic cable through the preloaded pull tape, installing optional tracer wire, and placing the product for temporary and permanent use. Channeltape™ Utility Identification Sleeve is designed to help identify and protect fiber optic cable installations while reducing the risk of accidental damage. The sleeve provides a highly visible alternative to exposed cable for temporary fiber drops and can remain in place when the cable is later installed underground using open trench or vibratory plow methods.
View Transcript
Icon - Elements Webflow Library - BRIX Templates

Channeltape™ Installation Instructions

Part 1: Instructions for Temporary Above Ground Use

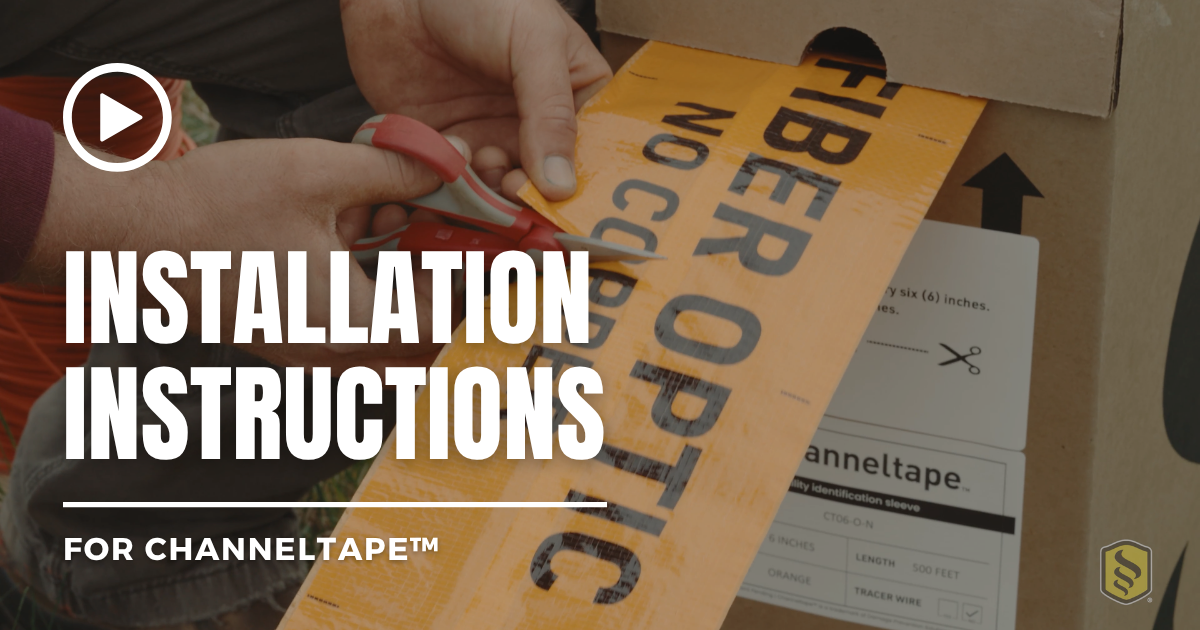

Dispense the tape from the box and cut to the desired length.

Attach the fiber optic cable to the preloaded pull tape at one end of the sleeve. You can also attach a tracer wire with the fiber.

Using the pull tape, pull the fiber optic cable through the tape from the opposite end.

For Detectable Channeltape™, join tracer wires as directed by engineer at both termination points.

Part 2: Instructions for Permanent Underground Installation

Option 1: Open Trench

With fiber inside, bend the tape into a U-shape with legend on the outside and place in trench.

Option 2: Vibratory Plow

Install the tape with the fiber inside using the standard vibratory plow methods for fiber optic cable.

Damage Prevention Solutions. We’ve got you covered.
