Ohio SPECIFICATIONS & Guidelines
Ohio Department of Transportation
ODOT Construction and Material Specifications, January 1, 2023
625.20
Underground Warning / Marking Tape
“Install tape approximately 6 to 10 inches (150 to 250 mm) below the final finished grade. Place with the printed side up and parallel with the finished surface. Ensure that the tape is not pulled, distorted or otherwise misplaced in completing the trench backfill."
>
Open Document
725.22
Underground Warning / Marking Tape
“Furnish tape that is an inert material, at least 5 inches (125 mm) wide composed of polyethylene or polypropylene plastic, highly resistant to alkalis, acids or other chemical components likely to be encountered in soils. Furnish tape in accordance with the ORC 3781.29 color code and with black identifying lettering in accordance with Table 725.22-1 printed on one side only.

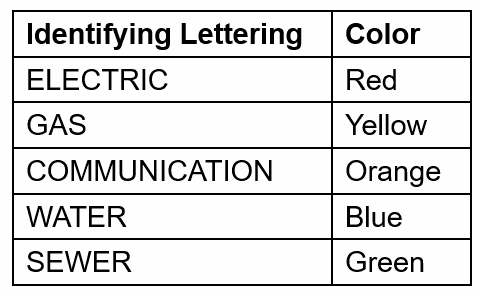

TABLE 725.22-1 UNDERGROUND UTILITY FACILITY COLOR CODES
Identifying Lettering - Color
ELECTRIC - Red
GAS - Yellow
COMMUNICATION - Orange
WATER - Blue
SEWER - Green
Furnish tape in continuous rolls with the identifying lettering repeated continuously the full length of the tape. Unless otherwise noted, furnish tape containing a high-strength core with a break strength of at least 3000 lb (1361 kg) when tested to ASTM D6775. Provide certified data verifying compliance with these requirements.”
>
Open Document
ODOT Supplemental Specification 804 Fiber Optic Cable and Components, October 21, 2022
804.06
Underground Warning / Marking Tape
"Provide underground warning/ marking tape per CMS 725.22. Tape shall be installed in all trenches containing underground communication conduit. See ITS-14.10 for installation details.
Underground warning/ marking tape contains an integral tracer wire and thus shall be terminated in communication cable markers. Connect tracer wire to terminals at the top of the marker.
Tape shall be paid for separately."
>
Open Document
ODOT Standard Construction Drawings, Traffic
ITS-14.10
Pull Box and Conduit Details
>
Open Document
Call Before You Dig
Ohio 811
Call:
811 or 800-362-2764
Click:
https://www.oups.org/
